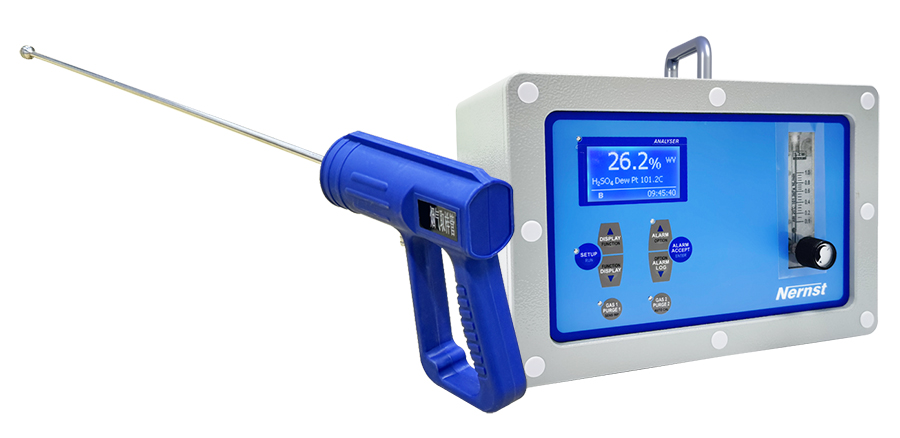

Nernst NP35A Portable H2SO4 Acid Dew Point Analyzer
Nernst NP35A Portable H2SO4 Acid Dew Point Analyzer
Application areas and characteristics:
The Nernst NP35A portable acid dew point analyzer is an instrument used to monitor the acid dew point temperature in boiler and heating furnace flue gas.
After using the Nernst NP35A portable acid dew point analyzer, the acid dew point value(0°C~200°C ACID DEW), steam (% water vapor value) or dew point (-50°C~100 ° C), water content (g/kg), and humidity value RH in boiler and heating furnace flue gas can be accurately determined.
Users can control the exhaust gas temperature within a range slightly higher than the flue gas acid dew point based on the acid dew point temperature displayed by the acid dew point analyzer or the 4-20mA output signal. Thus, the exhaust gas temperature of boilers and heating furnaces can be effectively controlled. Reduce equipment low-temperature sulfuric acid dew point corrosion. Improve operational thermal efficiency. Improve the safety of boiler operation and extend the service life of equipment.
Technical characteristics:
◆ Specialized probe measurement: One analyzer can simultaneously measure water dew point value, moisture content, and acid dew point value.
◆ Multi output control: The analyzer has two 4-20mA current outputs and computer communication interfaces RS232 and RS485.
◆ Measurement range: Acid dew point value from 0°C to 200°C, water vapor value from 0% to 100%, dew point value from -50°C to 100°C, and water content (g/kg per kilogram).
◆ Alarm settings: The analyzer has 1 universal alarm output and 3 programmable alarm outputs.
◆ Automatic calibration: The analyzer will automatically monitor various functional systems and calibrate them to ensure the accuracy of instrument measurement.
◆ Intelligent system: The analyzer can have human-machine dialogue and complete various settings according to predetermined settings.
◆ Display output function: The analyzer has a strong ability to display various parameters and has strong output and control functions for various parameters.
◆ Variable parameter selection: It can directly obtain high-precision combustion flue gas acid dew point values for different fuels (lignite, washed coal, coal powder, natural gas, blast furnace gas, heavy oil, various grades of fuel, etc.) based on the different sulfur content of SO2 generated and the conversion rate of each fuel to SO3.

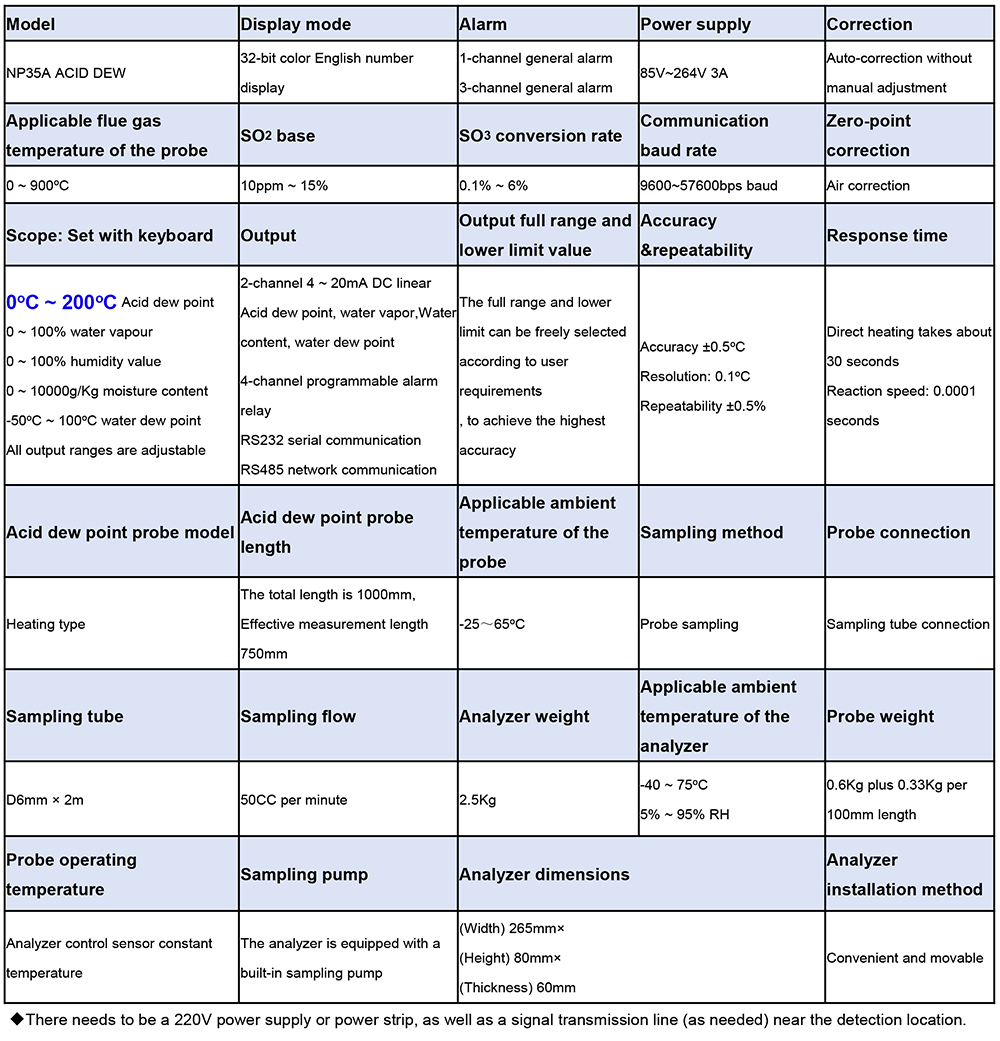

Specifications:
